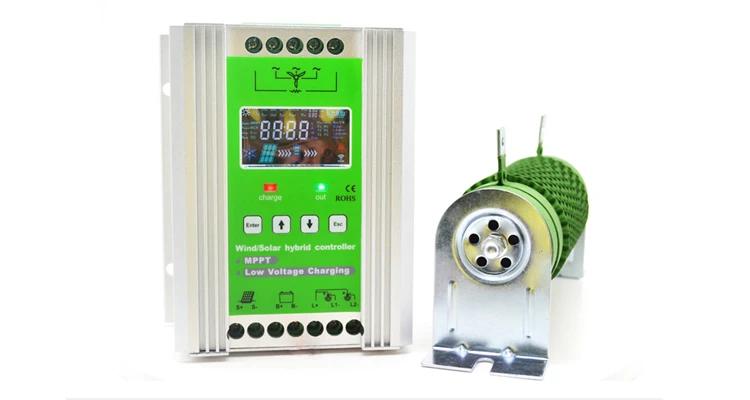

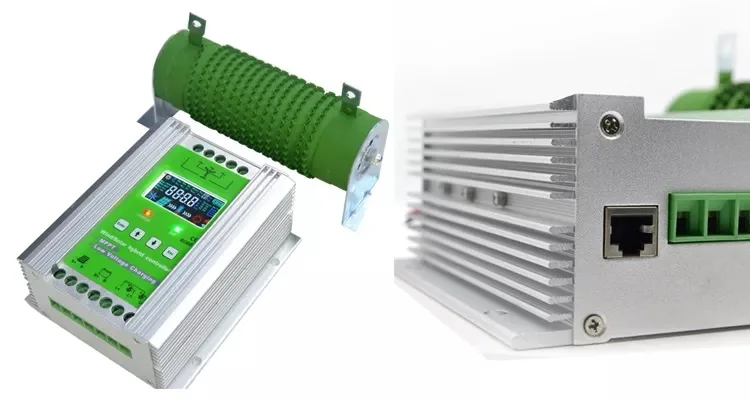

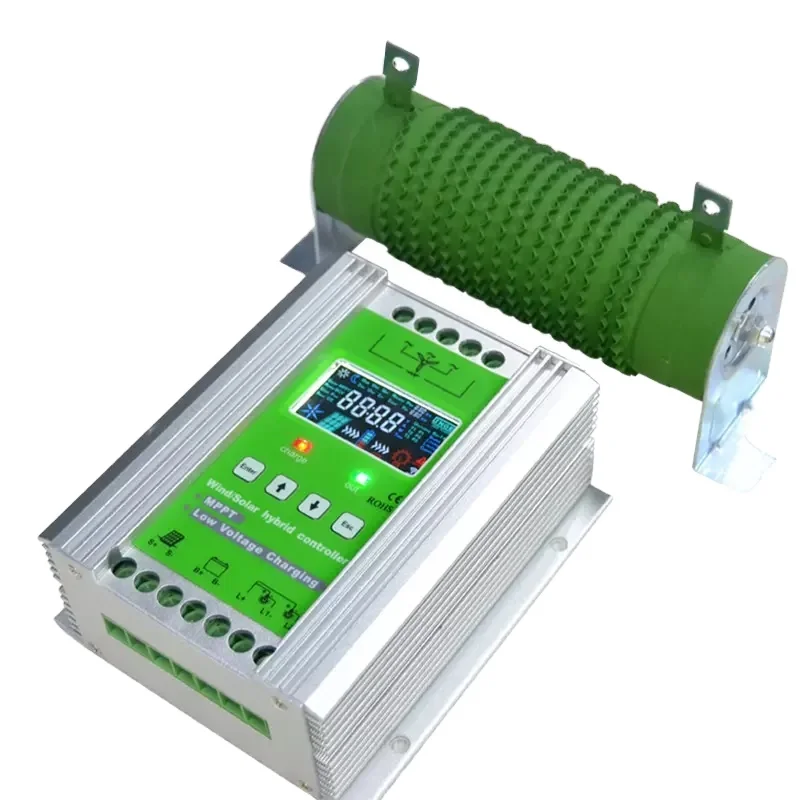

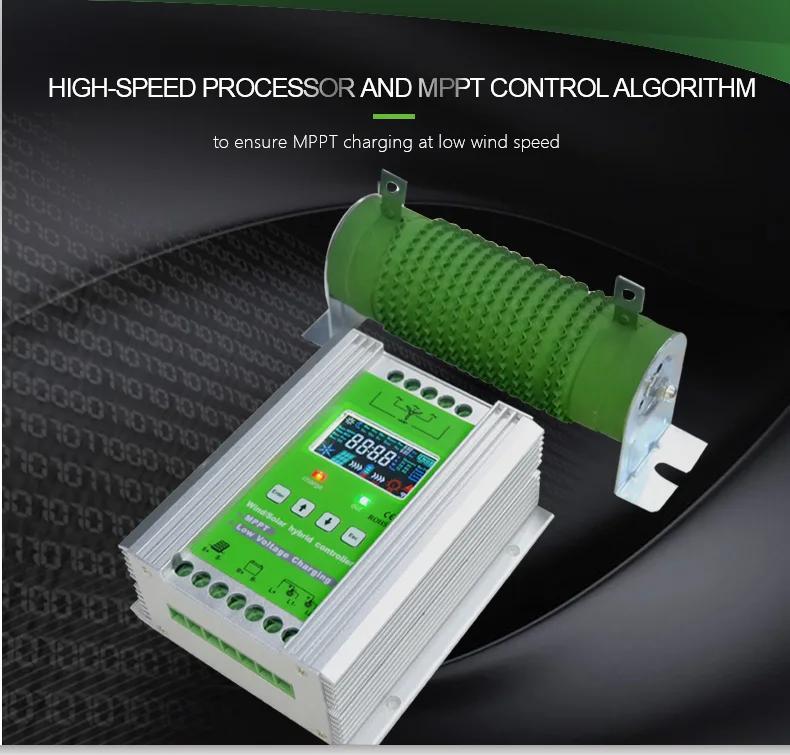

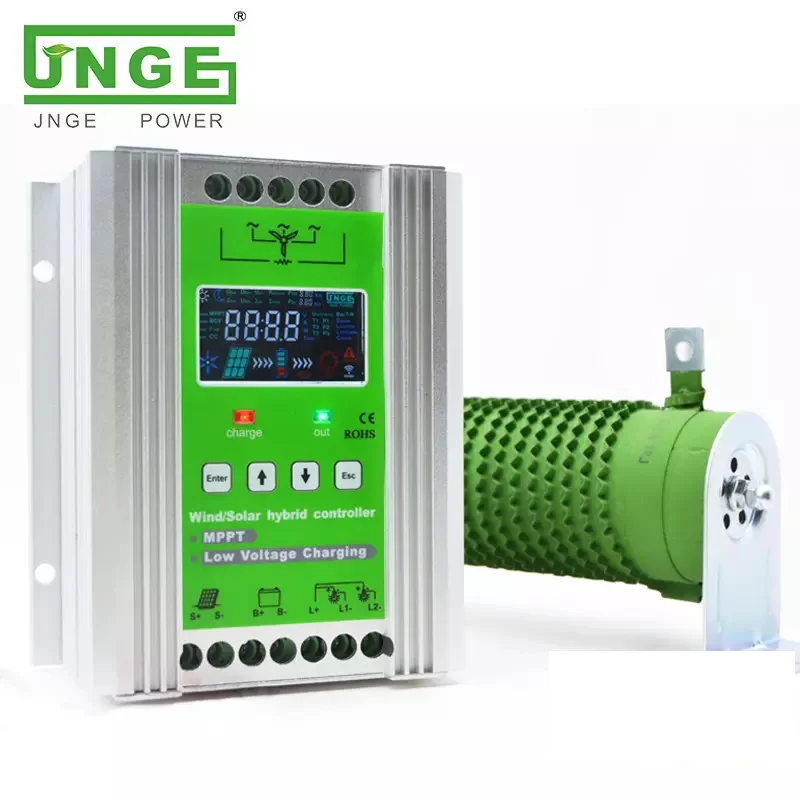

MPPT Wind and Solar Hybrid Charge Controller 1500W Wind Turbine + 1500W Solar Panel with WIFI Module + App

Harness the power of wind and solar energy with this advanced MPPT hybrid charge controller, designed for maximum efficiency and seamless integration into off-grid and renewable energy systems.

🔹 Why Choose This Hybrid Charge Controller?

This MPPT (Maximum Power Point Tracking) controller intelligently manages energy from both wind turbines and solar panels, ensuring optimal charging performance and battery longevity. Whether you’re powering a remote cabin, off-grid home, or industrial setup, this controller delivers stable, efficient energy conversion.

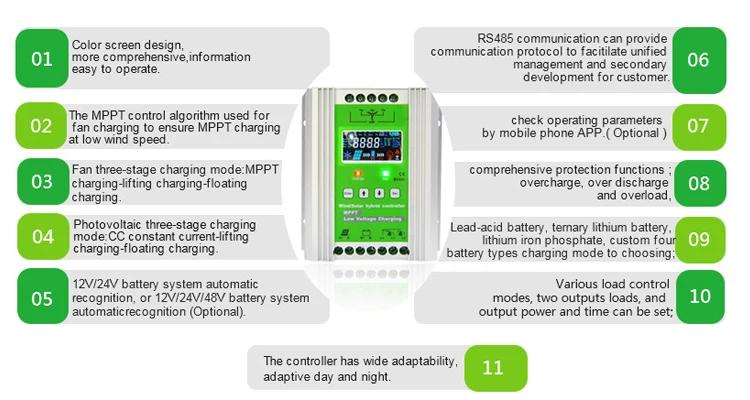

🔹 Key Features & Benefits

✅ Dual Energy Input – Supports 1500W wind turbines & 1500W solar panels for hybrid energy optimization.
✅ MPPT Technology – Maximizes power extraction, improving efficiency by up to 30% compared to PWM controllers.

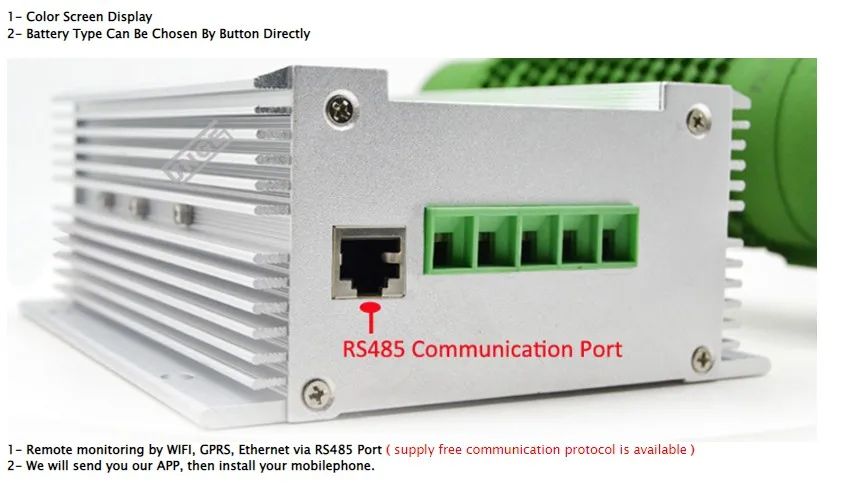

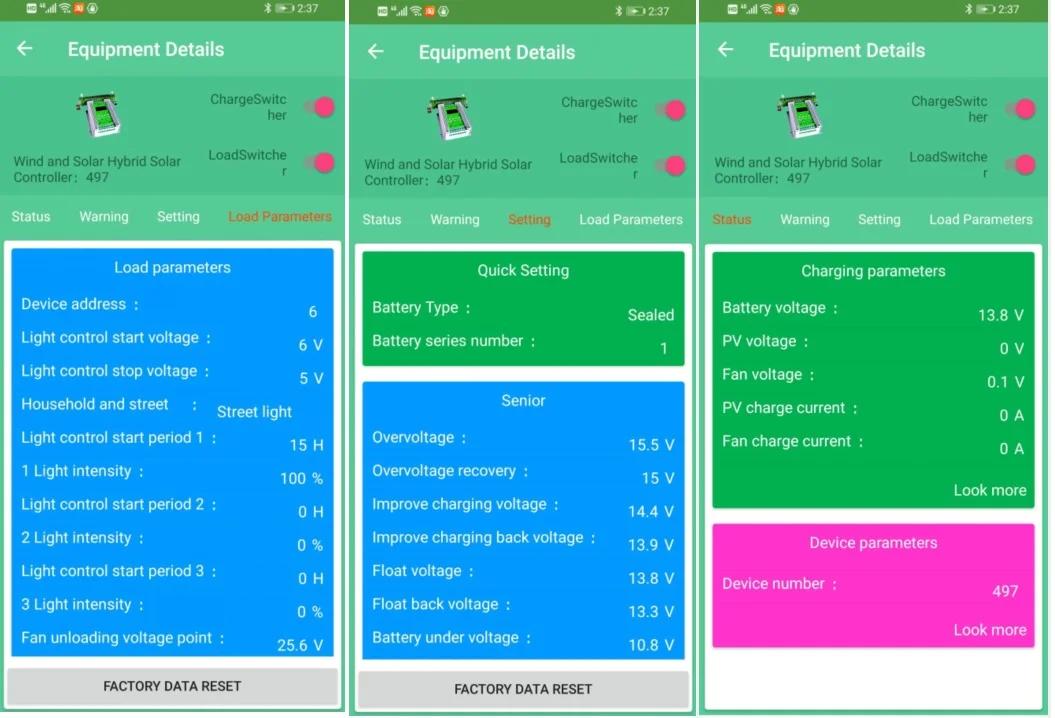

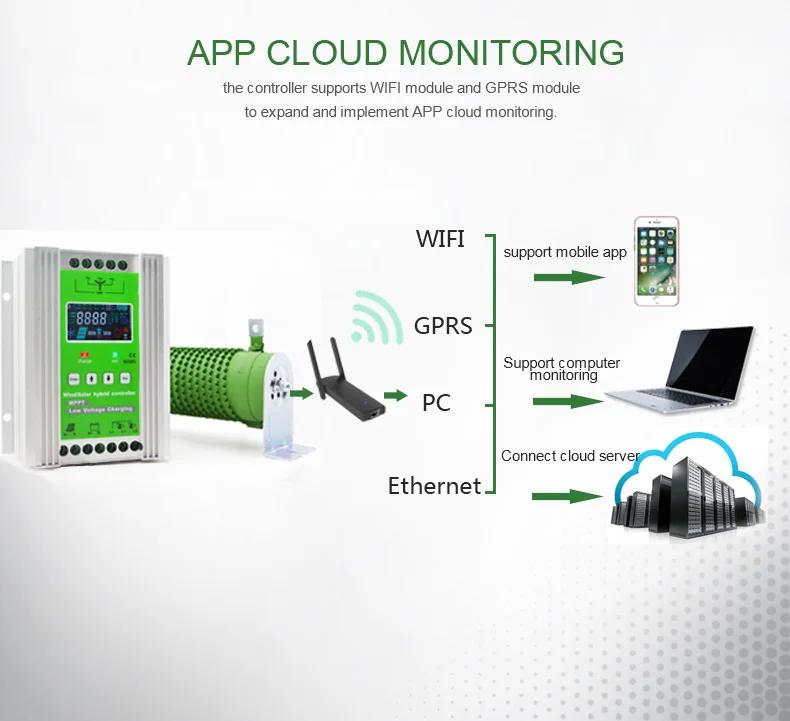

✅ WiFi Monitoring & App Control – Stay connected with real-time energy tracking via a dedicated mobile app.
✅ Smart Battery Management – Compatible with 12V, 24V, and 48V battery systems, ensuring safe, regulated charging.
✅ Weather-Resistant Design – Built for harsh environments, with robust casing to withstand extreme conditions.
✅ Automatic Load Control – Prevents overcharging, overheating, and voltage fluctuations, protecting your system.

🔹 How It Works

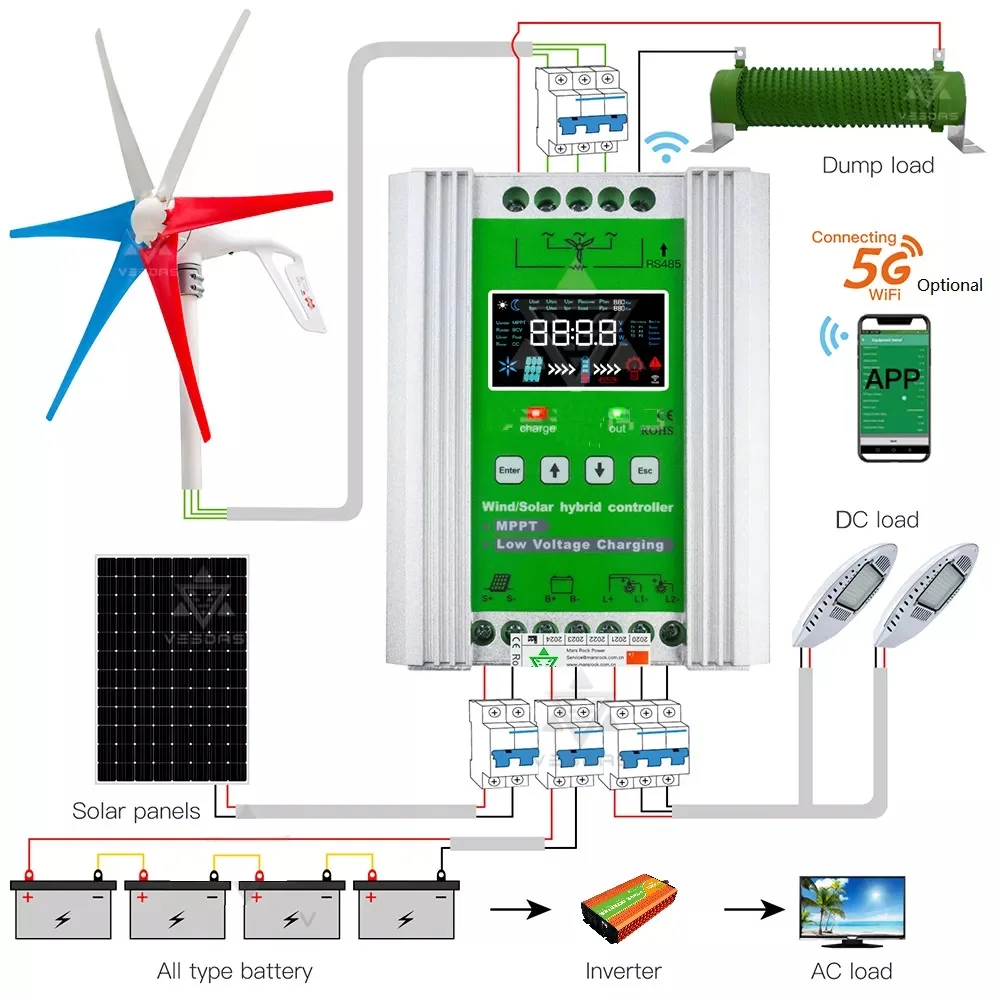

This MPPT charge controller continuously adjusts to the optimal voltage and current levels, ensuring maximum energy conversion from your wind turbine and solar panels. The WiFi module allows you to monitor performance remotely, making it easy to track energy production, battery status, and system health.

🔹 Ideal Applications

🔹 Off-Grid Homes & Cabins – Reliable power for remote locations.
🔹 Industrial & Commercial Use – Efficient energy management for businesses & farms.
🔹 Emergency Backup Systems – Ensures continuous power during outages.
🔹 Marine & RV Power Solutions – Perfect for boats, campers, and mobile setups.

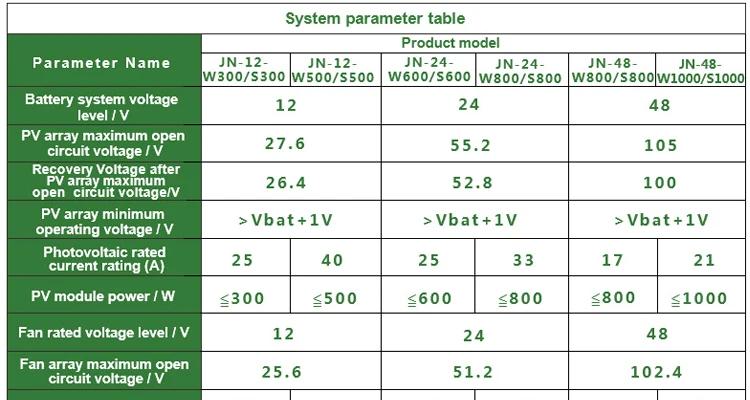

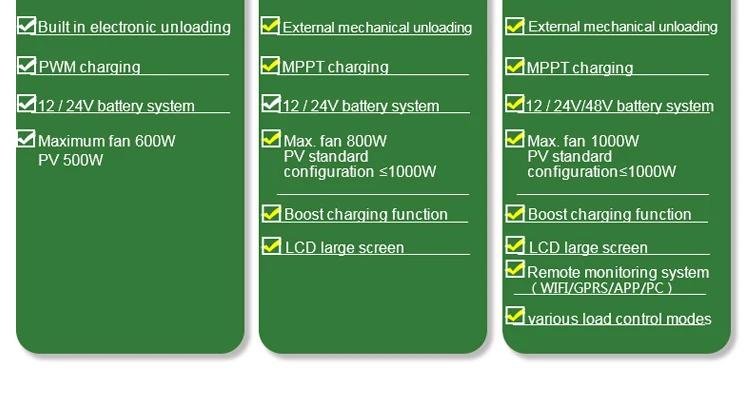

🔹 Technical Specifications

• Rated Wind Turbine Power: 1500W
• Rated Solar Panel Power: 1500W
• Battery Voltage Compatibility: 12V / 24V / 48V
• MPPT Efficiency: Up to 98%
• WiFi Module: Yes (App-Controlled)

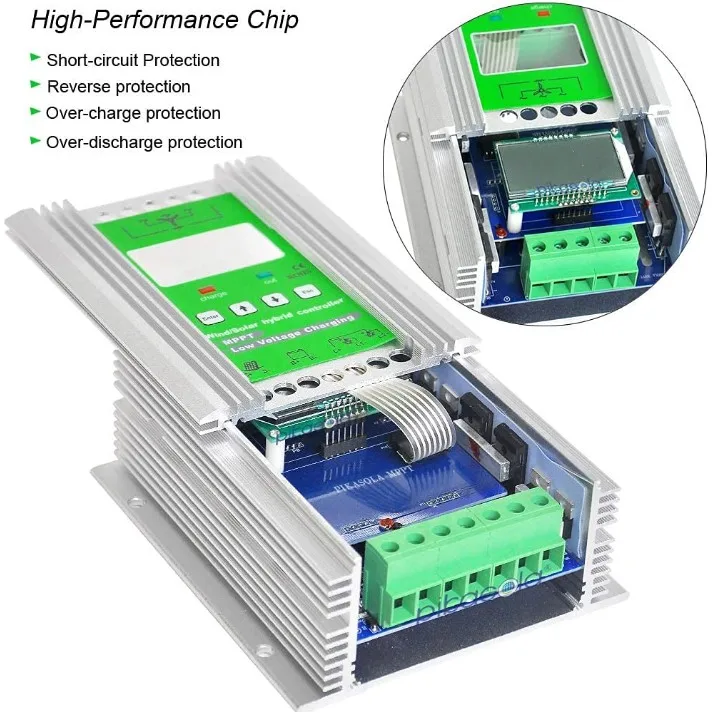

• Protection Features: Overcharge, Overheat, Short Circuit

🔹 MPPT vs. PWM – Understanding the Difference

When it comes to solar and wind charge controllers, two main technologies are used: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). While both regulate power flow from solar panels or wind turbines to batteries, MPPT controllers are far more efficient in energy conversion.

🔹 How PWM Works

A PWM charge controller operates by switching the connection between the power source (solar panel or wind turbine) and the battery. It maintains a fixed voltage level, typically set to match the battery voltage.
For example, if you have a 12V battery, a PWM controller will only allow charging when the input voltage is above 12V. If the voltage drops below this threshold, charging stops, leading to energy loss.

🔹 How MPPT Works (Why It’s Better)

An MPPT charge controller continuously tracks the optimal voltage and current levels to extract maximum power from the energy source. Unlike PWM, MPPT uses MOSFET-assisted technology, allowing it to boost or adjust voltage dynamically.
Even if the wind turbine or solar panel generates low voltage, MPPT can convert and optimize it to match the battery’s requirements.
For example, if a solar panel is producing only 10V, an MPPT controller can step up the voltage to 12V while adjusting the current accordingly (since Power = Voltage × Current). This ensures continuous charging, even in low-light or variable wind conditions.

🔹 Key Advantages of MPPT Over PWM

✅ Higher Efficiency – MPPT can improve energy conversion by up to 40% compared to PWM.
✅ Works in Low Voltage Conditions – Ensures charging even when solar/wind input fluctuates.
✅ Optimized Battery Charging – Prevents energy waste by adjusting voltage dynamically.
✅ Ideal for Variable Systems – MPPT is best for variable supply setups, while PWM is better for constant voltage applications.

🔹 Order Yours Today!

Upgrade your renewable energy system with this high-performance MPPT hybrid charge controller. Whether you’re looking to maximize efficiency, reduce energy waste, or monitor your system remotely, this controller is the perfect solution.
